Klíčové vlastnosti
- Vestavěný algoritmus deep learning pro robustní čtení kódů.
- Kompaktní design a malé rozměry.
- Obsahuje LED přísvit, který pomáhá zaměřit kódy.
- Disponuje konfigurovatelným IO rozhraní pro vstupní a výstupní signály.
- Podporuje komunikační protokoly: TCP, UDP, Serial, IO, Modbus, PROFINET, Ethernet/IP, FTP atd.
Red light source with USB interface: MV-ID2004M-06S-RBN-U

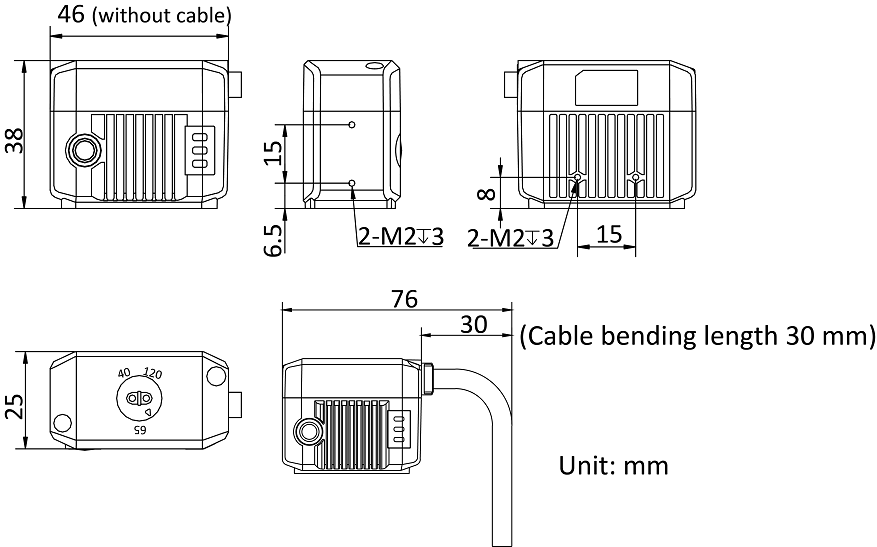

Rozměry
Specifikace MV-ID2004M-06S-RBN-U
| Model | Model | MV-ID2004M-06S-RBN-U |
|---|---|---|
| Performance | Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE 2-dimensional codes: QR Code, Data Matrix |
| Max. frame rate | 60 fps | |
| Max. reading speed | 38 codes/sec | |
| Sensor type | CMOS, global shutter | |
| Pixel size | 6.9 µm × 6.9 µm | |
| Sensor size | 1/2.9" | |
| Resolution | 704 × 540 | |
| Exposure time | 16 μs to 1 sec | |
| Gain | 0 dB to 15 dB | |
| Mono/color | Mono | |
| Communication protocol | SmartSDK, USB | |
| Optics | Focal length | 6 mm (0.2") |
| Working distance | 40 mm to 120 mm (1.6" to 4.7"), adjusting focus manually supported | |
| Ambient illumination | 0 lux to 50000 lux | |
| Light source | Red LED, blue LED, white LED | |
| Aiming system | Green LED | |
| Electrical features | Data interface | USB3.0 |
| Digital I/O | 17-pin M12 connector provides data transmission. Device trigger via pressing button on side supported. | |
| Power supply | 5 VDC (USB3.0 provides power supply) | |
| Max. power consumption | Approx. 4.6 W@5 VDC (USB3.0 provides power supply) | |
| Mechanical | Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS). |
| Dimension | 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") | |
| Weight | Approx. 160 g (0.35 lb.) | |
| Ingress protection | IP65 | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F), storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | IDMVS |
| Certification | CE, FCC, RoHS |
