Kamerové snímače / SC2000E / MV-SC2004EM-06S-WBN-Mini
MV-SC2004EM-06S-WBN-Mini
0.4 MP 1/2.9" Vision Sensor
Klíčové vlastnosti
- Vestavěná hardwarová platforma pro vysokorychlostní zpracování obrazu.
- Podporuje měřící algoritmus pro detekci přítomnosti objektu, polohy, rozměru atd.
- Obsahuje IO rozhraní pro vstupní a výstupní signály.
- Zobrazení stavu zařízení a multifunkční tlačítko.
- Obsahuje integrovaný konfigurovatelný světelný zdroj pro dokonalé osvětlené snímané oblasti.
- Podporuje komunikační protokoly: TCP, UDP, Serial, IO, Modbus, PROFINET, Ethernet/IP, FTP atd.
Model MV-SC2004EM-06S-WBN-Mini

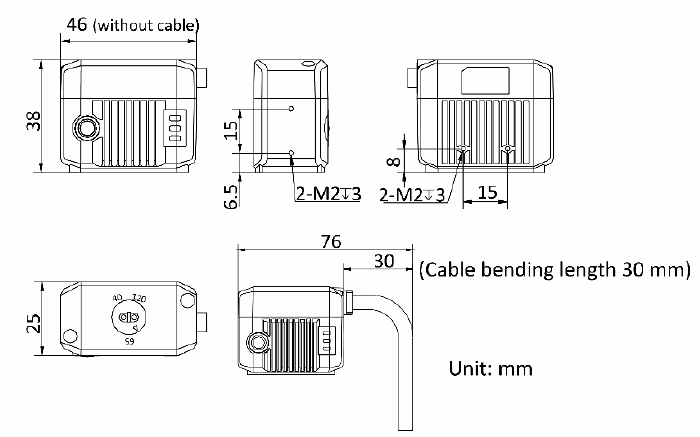

Rozměry
Specifikace MV-SC2004EM-06S-WBN-Mini
| Model | Model | MV-SC2004EM-06S-WBN-Mini |
|---|---|---|
| Type | 0.4 MP 1/2.9" Vision Sensor | |
| Tools | Vision tools | Existence: Pattern existence, spot existence Count: Pattern count, spot count Measurement: Brightness analysis, contrast measurement |
| Solution capacity | Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored. | |
| Communication protocol | Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP | |
| Camera | Sensor type | CMOS, global shutter |
| Pixel size | 6.9 μm × 6.9 μm | |
| Sensor size | 1/2.9" | |
| Resolution | 704 × 540 | |
| Max. Frame Rate | 60 fps | |
| Dynamic range | 74 dB | |
| SNR | 41 dB | |
| Gain | 0 dB to 15 dB | |
| Exposure time | 16 μs to 1 s | |
| Pixel format | Mono 8 | |
| Mono/Color | Mono | |
| Electrical features | Data interface | Fast Ethernet |
| Digital I/O | 17-pin M12 connector provides power, Ethernet, serial port, and digital I/O, including configurable I/O × 4 (Line 0/1/2/3). Device trigger via pressing button supported. Output signals support NPN only. |
|
| Power supply | 12 VDC to 24 VDC | |
| Max. power consumption | Approx. 7.5 W@12 VDC | |
| Mechanical | Lens mount | M10-mount, adjusting focus manually supported |
| Lens focal length | 6 mm (0.2") | |
| Lens cap | Transparent lens cap. | |
| Light source | White LED lamp × 4 | |
| Indicator | Power indicator (PWR), network indicator (LNK), and status indicator (STS). | |
| Dimension | 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0") | |
| Weight | Approx. 160 g (0.35 lb.) | |
| Ingress protection | IP65 (under proper installation of lens and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
|
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | SCMVS |
| Certifications | CE, FCC, KC |
