MV-SC2004PM-12S-WBN
SC2000Pro 0.4 MP Vision Sensor
Klíčové vlastnosti
- Vestavěná hardwarová platforma pro vysokorychlostní zpracování obrazu.
- Podporuje měřící algoritmus pro detekci přítomnosti objektu, polohy, rozměru atd.
- Obsahuje IO rozhraní pro vstupní a výstupní signály.
- Zobrazení stavu zařízení a multifunkční tlačítko.
- Obsahuje integrovaný konfigurovatelný světelný zdroj pro dokonalé osvětlené snímané oblasti.
- Podporuje komunikační protokoly: TCP, UDP, Serial, IO, Modbus, PROFINET, Ethernet/IP, FTP atd.
Snímač vidění s ohniskovou vzdáleností 12,4 mm: MV-SC2004PM-12S-WBN

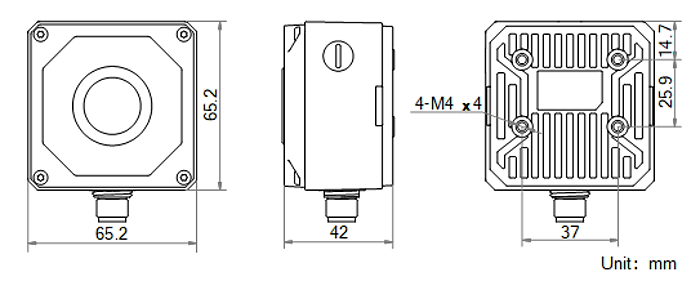

Rozměry
Specifikace MV-SC2004PM-12S-WBN
| Model | Model | MV-SC2004PM-12S-WBN |
|---|---|---|
| Type | 0.4 MP Vision Sensor | |
| Tools | Vision tools | Feature matching, fixture, find line, find circle, measure brightness, blob, detect distance, measure line to line, measure point and line, N point calibration, coordinate conversion, etc. |
| Solution capacity | Supports solution importing and exporting, up to 32 solutions and 40 modules can be stored. | |
| Communication protocol | RS-232, TCP, UDP, FTP, PROFINET, Modbus TCP, EtherNet/IP | |
| Camera | Sensor type | CMOS, global shutter |
| Pixel size | 6.9 µm × 6.9 µm | |
| Sensor size | 1/2.9" | |
| Resolution | 704 × 540 | |
| Max. Frame Rate | 100 fps | |
| Dynamic range | 74 dB | |
| SNR | 41 dB | |
| Gain | 0 dB to 15 dB | |
| Exposure time | 16 μs to 1 s | |
| Pixel format | Mono 8 | |
| Mono/Color | Mono | |
| Platform | Memory | 2 GB |
| Storage | 4 GB | |
| Electrical features | Interface | 17-pin M12 connector provides power, Ethernet, digital IO, and serial port |
| Ethernet | Fast Ethernet | |
| Digital IO | Input signal × 2 (Line 0/1), output signal × 3 (Line 5/6/7), bi-directional I/O × 3 (Line 2/3/4), and button input × 1. Output signal can be set as NPN or PNP | |
| Power supply | 12 VDC to 24 VDC | |
| Power consumption | < 5.4 W@12 VDC | |
| Mechanical | Lens mount | M12-mount, manual focus supported |
| Lens focal length | 12.4 mm | |
| Lens cap | Transparent lens cap. Polarization or infrared filter lens cap is optional | |
| Lighting | LED × 8: white (by default)/red/blue/NIR, LED × 48: white/red/blue |
|
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), and result indicator(OK/NG) | |
| Dimension | 65.2 mm × 65.2 mm × 42 mm (2.6" × 2.6" × 1.7") | |
| Weight | Approx. 240 g (0.5 lb.) | |
| Ingress protection | IP67 (under proper installation of lens and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
|
| Humidity | 20% to 95% RH, non-condensing | |
| General | Operating method | Via web based interface, SmartView |
| Certifications | CE, FCC, KC |
