Klíčové vlastnosti
Vestavěné vizuální nástroje deep learning pro rozpoznávání znaků, objektů, třídění objektů atd.
Podporuje automatické ostření pro získání jasnějších snímků.
Disponuje velkokapacitním paměťovým médiem pro ukládání snímků.
Podporuje komunikační protokoly TCP, UDP, Serial, FTP, Modbus, PROFINET.
Disponuje indikátory zobrazující aktuální stav zařízení.
Model
Smart kamera s ohniskovou vzdáleností 12 mm: MV-SC7060M-00C-NNN

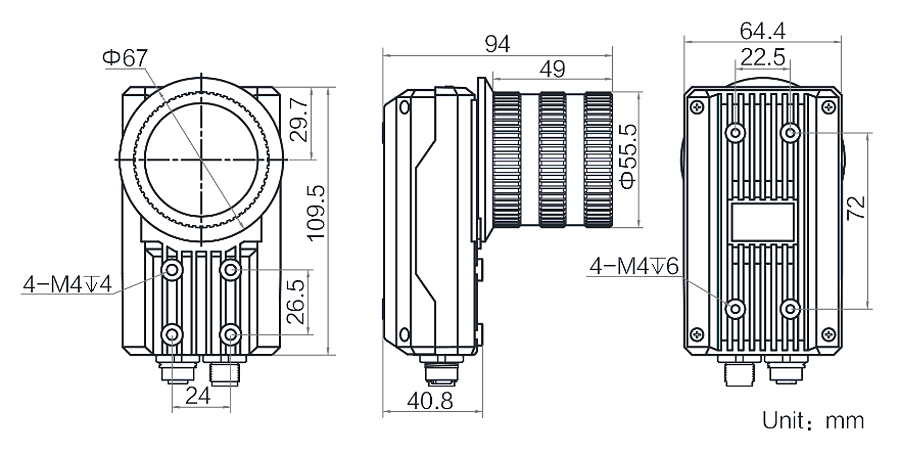

Rozměry
Specifikace MV-SC7060M-00C-NNN
Model | Model | MV-SC7060M-00C-NNN |
---|---|---|
Type | 6.0 MP Smart Camera | |
Tools | Vision tool | Feature matching, fixture, blob, deep learning character recognition, deep learning character location, deep learning classification, deep learning object detection, etc. |
Solution capacity | Supports solution importing and exporting, up to 32 solutions and 40 modules can be stored. | |
Communication protocol | TCP, UDP, serial port, IO, Modbus, PROFINET, Ethernet/IP, and FTP. | |
Camera | Sensor type | CMOS, global shutter |
Pixel size | 2.4 µm × 2.4 µm | |
Sensor size | 1/1.8" | |
Resolution | 3072 × 2048 | |
Max. Frame Rate | 30 fps | |
Dynamic range | 71.3 dB | |
SNR | 41.3 dB | |
Gain | 0 dB to 15 dB | |
Exposure time | 16 μs to 1 sec | |
Pixel format | Mono 8 | |
Mono/Color | Mono | |
Platform | Memory | 4 GB |
Storage | 32 GB | |
Electrical features | Data Interface | GigE |
Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (Line 0/1/2) × 3,opto-isolated output (Line 3/4/5) × 3, and RS-232 × 1 | |
Power supply | 12 VDC to 24 VDC | |
Power consumption | Approx. 7.5 W@24 VDC | |
Mechanical | Lens mount | C-mount |
Focal length | / | |
Lens cap | Transparent lens cap | |
Light source | Not included | |
Indicator | Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2). | |
Dimension | 109.5 mm × 64.4 mm × 94 mm (4.3" × 2.5" × 3.7") | |
Weight | Approx. 470 g (1.0 lb.) | |
Ingress protection | IP67 (under proper installation of waterproof lens cap) | |
Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
|
Humidity | 20% to 95% RH, non-condensing | |
General | Client software | Via web based interface |
Certification | CE, FCC, KC |
